A9E18327 | Schneider Electric

Signal light, illuminable, red, A9E18327

Order No.: 01P7227
EAN: 4099889224597
MPN:
A9E18327
Series: ilL
Schneider Electric
A9E18327 Schneider Electric Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
37.8063 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
37.81 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
37.8063 €

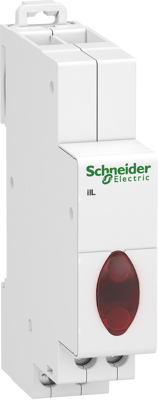

Signal light, A9E18327, Schneider Electric

This Acti9 iIL is a three-phase voltage presence indicator light. The voltage is 230 VAC to 400 VAC. The 3 red light on the front face lights up to indicate that a voltage is present. The tightening torque for the PZ1 screwdriver to connect screw connections is 1 N.m. The connection could be done with rigid copper cables from 0.5 mm² minimum up to 2 x 2.5 mm² maximum. The service life of the LED indicator light is 100000h of constant lightning efficiency. Because of the non-interchangeability of LEDs it is a maintenance-free device. The degree of protection is IP20. The pollution degree is 3.

Technical specifications
Version signal light
Type of mounting DIN rail
can be illuminated Yes
Actuator colour red
Protection class IP20
Logistics
Country of origin BE
Customs tariff number 85319000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Sustainable Yes
