XB4BD25 | Schneider Electric
Selector switch, unlit, latching, 1 Form A (N/O) + 1 Form B (N/C), waistband round, black, front ring silver, 2 x 90°, mounting Ø 22 mm, XB4BD25
Unit Price (€ / pc.)
24.6211 € *
Available: 3 pcs.
Leadtime: On Request **
Total Price:
24.62 € *
Price list
Quantity
Price per unit*
1 pcs.
24.6211 €
5 pcs.
23.9547 €
*incl. VAT plus shipping costs
**Subject to prior sale

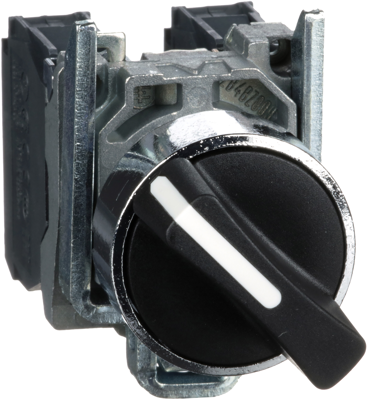

Selector switch, XB4BD25, Schneider Electric
This Harmony XB4 modular black selector switch has 2 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Technical specifications
| Connection | screw connection | |
| Version | selector switch | |
| can be illuminated | No | |
| Collar shape of the front frame | round | |
| Rotation angle | 2 x 90° | |
| Installation diameter | 22 mm | |
| Actuator colour | black | |
| Front ring colour | silver | |
| Contact function | latching | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Protection class | IP67 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
