XB4BPS21EX | Schneider Electric
Pushbutton, unlit, groping, 1 Form A (N/O), waistband round, black, front ring silver, mounting Ø 22 mm, XB4BPS21EX
Unit Price (€ / pc.)
61.3564 € *
Available: 0 pcs.
Leadtime: On Request **

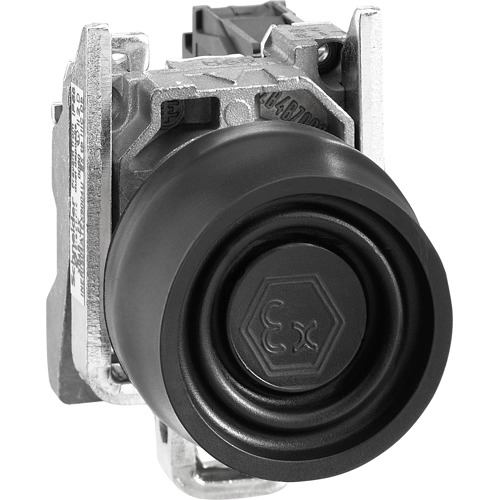

Push button, XB4BPS21EX, Schneider Electric
This Harmony XB4 black, complete push button is part of the range diameter 22mm, Harmony XB4 metal, explosive atmosphere, ATEX dust offer. It is designed for industries where explosive atmospheres can be present. It is ideal for use in environments where the generation of possible ignition sources can be prevented and controlled. It has a circular head shape with a booted, colored silicon flush spring return push. It features 1 NO slow break contact and screw connection type. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67. XB4 explosive atmosphere range obtained the certificates ATEX dust offer and ATEX certificate 04ATEX9004U.
Technical specifications
| Connection | screw connection | |
| Version | pushbutton | |
| can be illuminated | No | |
| Collar shape of the front frame | round | |
| Installation diameter | 22 mm | |
| Actuator colour | black | |
| Front ring colour | silver | |
| Contact function | groping | |
| Latching switching function | 1 Form A (N/O) | |
| Protection class | IP66 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
