XB6CF3B1B | Schneider Electric
Pushbutton, illuminable, latching, 1 Form A (N/O), waistband square, green, front ring black, mounting Ø 16 mm, XB6CF3B1B
Unit Price (€ / pc.)
16.898 € *
Available: 0 pcs.
Leadtime: 1 Week **

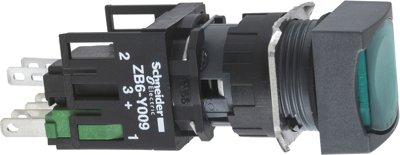

Pushbutton, XB6CF3B1B, Schneider Electric
This control and signalling device made of plastic has a diameter of 16 mm. This product is designed for industrial applications and features a simple installation with great flexibility.
Technical specifications
| Connection | Flachstecker 2,8 | |
| can be illuminated | Yes | |
| Collar shape of the front frame | quadratisch | |
| Installation diameter | 16 mm | |
| Actuator colour | grün | |
| Front ring colour | schwarz | |
| Contact function | rastend | |
| Contact material | silberlegierung | |
| Product type | Drucktaster | |
| Latching switching function | 1 Schließer | |
| Protection class | IP65 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 1,2-Dimethoxyethan; Ethylenglykoldimethylether (EGDME) |
| Sustainable | Yes |
