XB6DD221B | Schneider Electric
Selector switch, unlit, latching, 1 Form A (N/O) + 1 Form B (N/C), waistband rectangular, black, front ring black, 2 x 60°, mounting Ø 16 mm, XB6DD221B
Unit Price (€ / pc.)
14.2800 € *
Available: 0 pcs.
Leadtime: On Request **

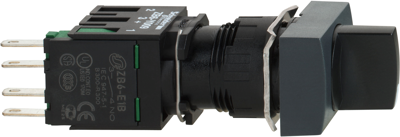

Selector switch, XB6DD221B, Schneider Electric
This control and signalling device made of plastic has a diameter of 16 mm. This product is designed for industrial applications and features a simple installation with great flexibility.
Technical specifications
| Connection | faston plug 2.8 | |
| Version | selector switch | |
| can be illuminated | No | |
| Collar shape of the front frame | rectangular | |
| Rotation angle | 2 x 60° | |
| Installation diameter | 16 mm | |
| Actuator colour | black | |
| Front ring colour | black | |
| Contact function | latching | |
| Contact material | silver alloy | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Protection class | IP65 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
