XB6DGC5B | Schneider Electric
Key switch, unlit, latching, 1 Form A (N/O) + 1 Form B (N/C), waistband square, black, front ring black, 2 x 70°, mounting Ø 16 mm, XB6DGC5B
Unit Price (€ / pc.)
30.107 € *
Available: 0 pcs.
Leadtime: On Request **

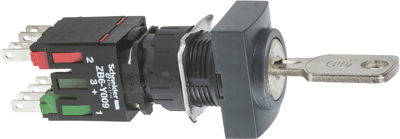

Key switch, XB6DGC5B, Schneider Electric
This Harmony XB6, complete key selector switch is part of the range diameter 16 mm plastic, Harmony XB6 monolithic. It has a a rectangular head shape, and is supplied with a Ronis key no. 200 operated knob. It features 2 positions maintained, at 70°. It features 1 NO + 1 NC slow break contacts and faston connection type. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It weighs 36 g. Its reduced diameter 16 mm makes it suitable to applications where less space is available for mounting, like small machines and control panels.
Technical specifications
| Connection | faston plug 2.8 | |
| Version | key switch | |
| can be illuminated | No | |
| Collar shape of the front frame | square | |
| Rotation angle | 2 x 70° | |
| Installation diameter | 16 mm | |
| Actuator colour | black | |
| Front ring colour | black | |
| Contact function | latching | |
| Contact material | silver alloy | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Protection class | IP65 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
