XB7NA33 | Schneider Electric
Pushbutton, unlit, groping, 2 Form A (N/O), waistband round, green, front ring black, mounting Ø 22 mm, XB7NA33
Unit Price (€ / pc.)
10.2697 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
10.27 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2697 €
5 pcs.
9.8175 €
10 pcs.
9.3891 €
15 pcs.
8.8893 €
*incl. VAT plus shipping costs
**Subject to prior sale

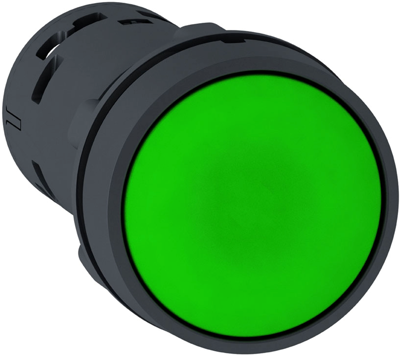

Push button, XB7NA33, Schneider Electric
This Harmony XB7, flush monolithic green push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Drucktaster | |
| Beleuchtbar | No | |
| Bundform | rund | |
| Einbaudurchmesser | 22 mm | |
| Farbe Betätiger | grün | |
| Farbe Frontring | schwarz | |
| Kontaktfunktion | tastend | |
| Schaltfunktion | 2 Schließer | |
| Schutzart (Betätigungsseite) | IP54 |
Download
Logistics
| Ursprungsland | ID |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
| Nachhaltig | Yes |
