ZB5AA14 | Schneider Electric
Pushbutton, unlit, groping, waistband round, white, front ring black, mounting Ø 22 mm, ZB5AA14
Unit Price (€ / pc.)
6.9258 € *
Available: 0 pcs.
Leadtime: On Request **

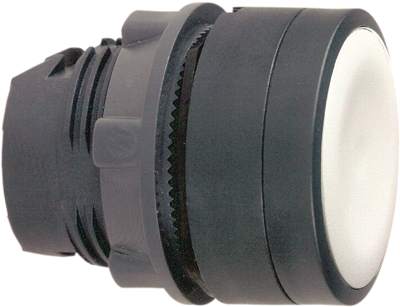

Front element, ZB5AA14, Schneider Electric
This white button head provides a robust and ergonomic interface for controlling your machines thanks to its high bezel flush head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Technical specifications
| Version | pushbutton | |
| can be illuminated | No | |
| Collar shape of the front frame | round | |
| Installation diameter | 22 mm | |
| Actuator colour | white | |
| Front ring colour | black | |
| Contact function | groping | |
| Protection class | IP66 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Sustainable | Yes |
