82915 | Schneider Electric

CEE surface-mounted socket, 2 pole, 32 A/20-25 V, purple, IP44, 82915

Order No.: 01P6168
EAN: 4099889879605
MPN:
82915
Series: PratiKa
Schneider Electric
82915 Schneider Electric CEE Connectors

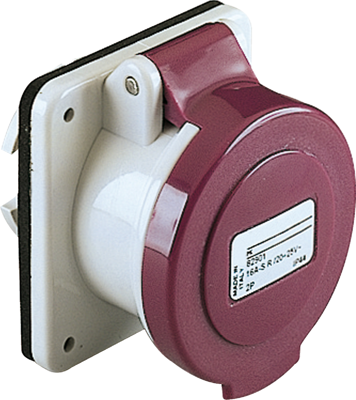

Image may differ
Unit Price (€ / pc.)
44.1728 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
44.17 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
44.1728 €

PratiKa industrial socket, 82915, Schneider Electric

This Pratika industrial socket with completely loosened captive screws connection is straight panel mounted. It has 2P poles, rated current is 32A and the operating voltage is 20VAC to 25VAC. The dimensions of the base plate are (W) 65mm x (H) 65mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A are 2.5mm² to 6mm². The color of the socket is light grey (RAL 7035) with violet easy identification of the operating voltage. The frequency is 50Hz or 60Hz.

Technical specifications
Anschluss Schraubanschluss
Ausführung Anbausteckdose
Farbe violett
Frequenzbereich 50 bis 60 Hz
Leiterquerschnitt 2,5-6,0 mm²
Nennleistung 32 A/20-25 V
Polzahl 2-polig
Schutzart (IP) IP44
Logistics
Ursprungsland IT
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
