82918 | Schneider Electric

CEE surface-mounted socket, 3 pole, 32 A/40-50 V, white, 12 h, IP44, 82918

Order No.: 01P6171
EAN: 4099889879636
MPN:
82918
Series: PratiKa
82918 Schneider Electric CEE Connectors

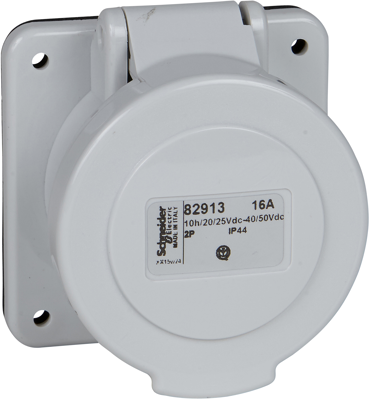

Image may differ
Unit Price (€ / pc.)
52.7051 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
52.71 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
52.7051 €

PratiKa industrial socket, 82918, Schneider Electric

This Pratika industrial socket with completely loosened captive screws connection is straight panel mounted. It has 3P poles, rated current is 32A and the operating voltage is 40VAC to 50VAC. The dimensions of the base plate are (W) 65mm x (H) 65mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A are 2.5mm² to 6mm². The color of the socket is light grey (RAL 7035) with white easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of secondary keyway is 12h.

Technical specifications
Anschluss Schraubanschluss
Ausführung Anbausteckdose
Farbe weiß
Frequenzbereich 50 bis 60 Hz
Leiterquerschnitt 2,5-6,0 mm²
Nennleistung 32 A/40-50 V
Polzahl 3-polig
Schutzart (IP) IP44
Logistics
Ursprungsland IT
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
