82954 | Schneider Electric

CEE surface-mounted socket, 3 pole, 16 A/40-50 V, white, IP67, 82954

Order No.: 01P6180
EAN: 4099889879728
MPN:
82954
Series: PratiKa
82954 Schneider Electric CEE Connectors

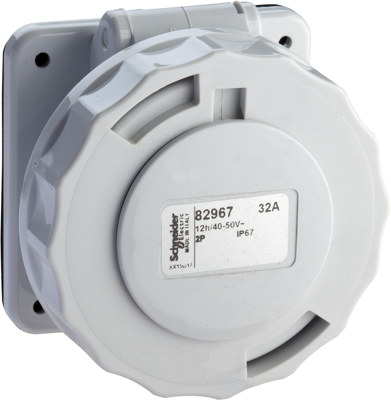

Image may differ
Unit Price (€ / pc.)
77.4571 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
77.46 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
77.4571 €

PratiKa industrial socket, 82954, Schneider Electric

This Pratika industrial socket with completely loosened captive screws connection is straight panel mounted. It has 3P poles, rated current is 16A and the operating voltage is 40VAC to 50VAC. The dimensions of the base plate are (W) 65mm x (H) 65mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1mm² to 2.5mm². The color of the socket is light grey (RAL 7035) with white easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of secondary keyway is 12h.

Technical specifications
Anschluss Schraubanschluss
Ausführung Anbausteckdose
Farbe weiß
Frequenzbereich 50 bis 60 Hz
Leiterquerschnitt 1,0-2,5 mm²
Nennleistung 16 A/40-50 V
Polzahl 3-polig
Schutzart (IP) IP67
Logistics
Ursprungsland IT
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
