PKX32M724 | Schneider Electric
CEE plug, 4 pole, 32 A/200-250 V, blue, 9 h, IP67, PKX32M724
Unit Price (€ / pc.)
56.6559 € *
Available: 0 pcs.
Leadtime: On Request **

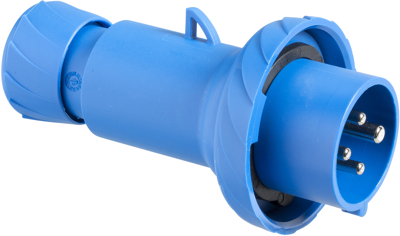

PratiKa wander plug - straight, PKX32M724, Schneider Electric
This Pratika industrial wander plug with fast connection connection is straight. It has 3P+E poles, rated current is 32A and the operating voltage is 230VAC. The dimensions of the base plate are (W) 95mm x (H) 152mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A are 2.5mm² to 10mm². The color of the socket is blue to easily identify the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 9h.
Technical specifications
| Connection | IDC connection | |
| Version | plug | |
| Colour | blue | |
| Frequency range | 50 to 60 Hz | |
| Cable cross-section | 2.5-10 mm² | |
| Nominal power | 32 A/200-250 V | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
