28901 | Schneider Electric
Load-break switch, rotary actuator, 4 pole, 40 A, 690 V, (W x H x D) 90 x 85 x 62.5 mm, fixed mounting, 28901
Unit Price (€ / pc.)
93.3436 € *
Available: 0 pcs.
Leadtime: On Request **
Switch disconnector, 28901, Schneider Electric

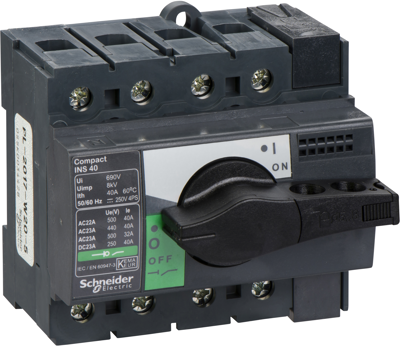

This Compact INS40 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 40A at 415VAC in categories AC22A and AC23A. The rated voltage is 500 VAC 50/60 Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS40 is a class II insulation level front-face device as per IEC 60664 standard.
Technical specifications
| Betätiger | Drehbetätiger | |
| Breite | 90 mm | |
| Dauerstrom | 40 A | |
| Höhe | 85 mm | |
| Isolationsspannung | 690 V | |
| Montage | Festeinbau | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP20 | |
| Tiefe | 62.5 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
