28903 | Schneider Electric

Load-break switch, Rotary actuator, 4 pole, 63 A, 690 V, (W x H x D) 90 x 85 x 62.5 mm, fixed mounting, 28903

Order No.: 01P3745
EAN: 4099889272093
MPN:
28903
Series: Compact INS/INV
Schneider Electric
28903 Schneider Electric Circuit Breakers

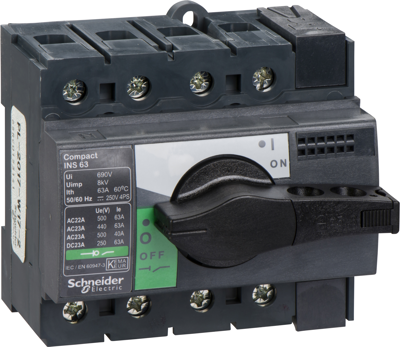

Image may differ
Unit Price (€ / pc.)
103.3753 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
103.38 € *
Price list
Quantity
Price per unit*
1 pcs.
103.3753 €
3 pcs.
100.5907 €
*incl. VAT plus shipping costs
**Subject to prior sale

Switch disconnector, 28903, Schneider Electric

This Compact INS63 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 63 A at 415VAC in categories AC22A and AC23A. The rated voltage is 500 VAC 50/60 Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS63 is a class II insulation level front-face device as per IEC 60664 standard.

Technical specifications
Actuator Rotary actuator
Width 90 mm
Permanent current 63 A
Height 85 mm
Isolation voltage 690 V
Assembly fixed mounting
Pin number 4 pole
Degree of protection (IP) IP20
Depth 62.5 mm
Logistics
Country of origin PL
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
