28904 | Schneider Electric

Load-break switch, Rotary actuator, 3 pole, 80 A, 690 V, (W x H x D) 90 x 85 x 62.5 mm, fixed mounting, 28904

Order No.: 01P3746
EAN: 4099889272109
MPN:
28904
Series: Compact INS/INV
Schneider Electric
28904 Schneider Electric Circuit Breakers

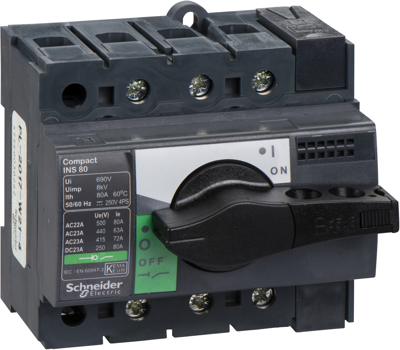

Image may differ
Unit Price (€ / pc.)
94.4622 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
94.46 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
94.4622 €

Switch disconnector, 28904, Schneider Electric

This Compact INS80 is a 3 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 80 A at 415 VAC in category AC22A, and 72A at 415 VAC in category AC23A. The rated voltage is 500 VAC 50/60 Hz or 250 VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS80 is a class II insulation level front-face device as per IEC 60664 standard.

Technical specifications
Actuator Rotary actuator
Width 90 mm
Permanent current 80 A
Height 85 mm
Isolation voltage 690 V
Assembly fixed mounting
Pin number 3 pole
Degree of protection (IP) IP20
Depth 62.5 mm
Logistics
Country of origin PL
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
