28913 | Schneider Electric

Load-break switch, Rotary actuator, 4 pole, 160 A, 690 V, (W x H x D) 135 x 100 x 62.5 mm, fixed mounting, 28913

Order No.: 01P3753
EAN: 4099889272178
MPN:
28913
Series: Compact INS/INV
Schneider Electric
28913 Schneider Electric Circuit Breakers

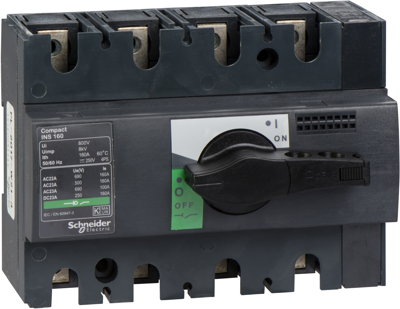

Image may differ
Unit Price (€ / pc.)
206.0247 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
206.02 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
206.0247 €

Switch disconnector, 28913, Schneider Electric

This Compact INS160 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 160 A at 415 VAC in categories AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS160 is a class II insulation level front-face device as per IEC 60664 standard.

Technical specifications
Actuator Rotary actuator
Width 135 mm
Permanent current 160 A
Height 100 mm
Isolation voltage 690 V
Assembly fixed mounting
Pin number 4 pole
Degree of protection (IP) IP40
Depth 62.5 mm
Logistics
Country of origin PL
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
