31113 | Schneider Electric
Load-break switch, rotary actuator, 4 pole, 500 A, 750 V, (W x H x D) 185 x 205 x 130 mm, fixed mounting, 31113
Order No.: 01P3903
EAN: 4099889272475
MPN:
31113
Unit Price (€ / pc.)
584.1234 € *
Available: 0 pcs.
Leadtime: On Request **
Switch disconnector, 31113, Schneider Electric

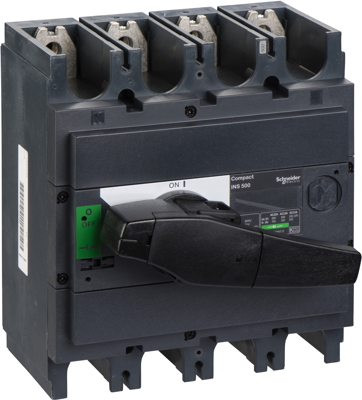

This Compact INS500 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 500A at 415 VAC in categories AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS500 is a class II insulation level front-face device as per IEC 60664 standard.
Technical specifications
| Betätiger | Drehbetätiger | |
| Breite | 185 mm | |
| Dauerstrom | 500 A | |
| Höhe | 205 mm | |
| Isolationsspannung | 750 V | |
| Montage | Festeinbau | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP40 | |
| Tiefe | 130 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | 1,2-Dimethoxyethan; Ethylenglykoldimethylether (EGDME) |
