31115 | Schneider Electric
Load-break switch, Rotary actuator, 4 pole, 630 A, 750 V, (W x H x D) 185 x 205 x 130 mm, fixed mounting, 31115
Unit Price (€ / pc.)
808.4622 € *
Available: 0 pcs.
Leadtime: On Request **
Switch disconnector, 31115, Schneider Electric

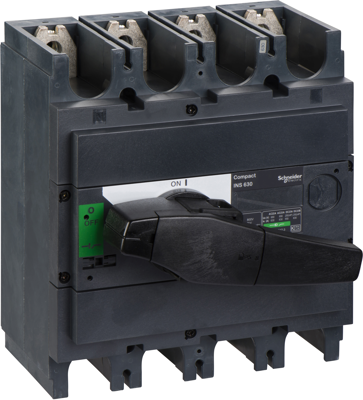

This Compact INS630 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 630A at 415 VAC in categories AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS630 is a class II insulation level front-face device as per IEC 60664 standard.
Technical specifications
| Actuator | Rotary actuator | |
| Width | 185 mm | |
| Permanent current | 630 A | |
| Height | 205 mm | |
| Isolation voltage | 750 V | |
| Assembly | fixed mounting | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP20 | |
| Depth | 130 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
