31128 | Schneider Electric

Load-break switch, rotary actuator, 3 pole, 320 A, 750 V, (W x H x D) 185 x 205 x 130 mm, fixed mounting, 31128

Order No.: 01P3915
EAN: 4099889272598
MPN:
31128
Series: Compact
31128 Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
328.3924 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
328.39 € *
Price list
Quantity
Price per unit*
1 pcs.
328.3924 €
2 pcs.
320.6693 €
*incl. VAT plus shipping costs
**Subject to prior sale

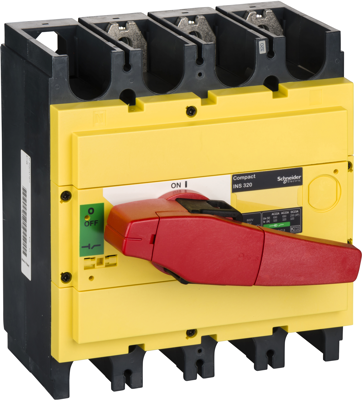

Switch disconnector, 31128, Schneider Electric

This Compact INS320 is a 3 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 320 A at 415 VAC in categories AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS320 is a class II insulation level front-face device as per IEC 60664 standard.

Technical specifications
Actuator Drehbetätiger
Width 185 mm
Permanent current 320 A
Height 205 mm
Isolation voltage 750 V
Assembly Festeinbau
Pin number 3-polig
Product type Lasttrennschalter
Degree of protection (IP) IP40
Depth 130 mm
Logistics
Country of origin PL
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
