31147 | Schneider Electric

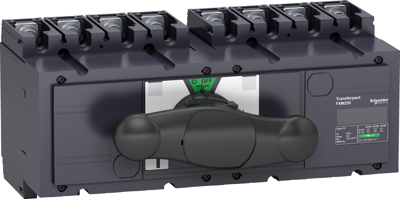

Manual mains changeover switch, Rotary actuator, 4 pole, 250 A, 750 V, (W x H x D) 295 x 136 x 131 mm, fixed mounting, 31147
Unit Price (€ / pc.)
633.675 € *
Available: 0 pcs.
Leadtime: On Request **
Manual mains switch, 31147, Schneider Electric
FXM250 is a complete manual source changeover assembly for two Compact INS250 4 poles switch disconnectors. It provides an easy way to implement source changeover functions with small size, taking up less room in the switchboard. The operational current is 250 A at 690 VAC 50/60 Hz, in categories AC22A/AC23A. The operational current is 250 A at 125VDC (2 poles in series) or at 250 VDC (4 poles in series), in categories DC22A/DC23A. There is a single 3 position rotary handle that controls the two switch disconnectors (normal source ON, OFF, replacement source ON). A complete source changeover assembly can be ordered with a single catalogue number. A complete source changeover assembly can be ordered with a single catalogue number.
Technical specifications
| Actuator | Rotary actuator | |
| Width | 295 mm | |
| Permanent current | 250 A | |
| Height | 136 mm | |
| Isolation voltage | 750 V | |
| Assembly | fixed mounting | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP40 | |
| Depth | 131 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85371091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
