31166 | Schneider Electric

Load-break switch, rotary actuator, 3 pole, 250 A, 750 V, (W x H x D) 140 x 136 x 96 mm, fixed mounting, 31166

Order No.: 01P3946
EAN: 4099889272895
MPN:
31166
Series: Compact INS/INV
31166 Schneider Electric Circuit Breakers

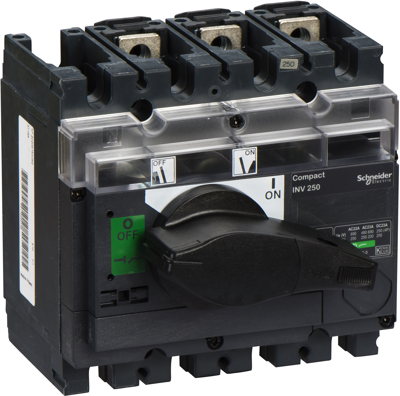

Image may differ
Unit Price (€ / pc.)
285.6119 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
285.61 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
285.6119 €

Switch disconnector, 31166, Schneider Electric

This Compact INV250 is a 3 poles non-automatic switch-disconnector with visible break and black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 250 A at 415 VAC in categories AC21A, AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. Compact INV range allows the visible break of the main contacts through a transparent cover. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INV250 is a class II insulation level front-face device as per IEC 60664 standard.

Technical specifications
Betätiger Drehbetätiger
Breite 140 mm
Dauerstrom 250 A
Höhe 136 mm
Isolationsspannung 750 V
Montage Festeinbau
Polzahl 3-polig
Schutzart (IP) IP40
Tiefe 96 mm
Logistics
Ursprungsland PL
Zolltarifnummer 85365080
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
