31167 | Schneider Electric

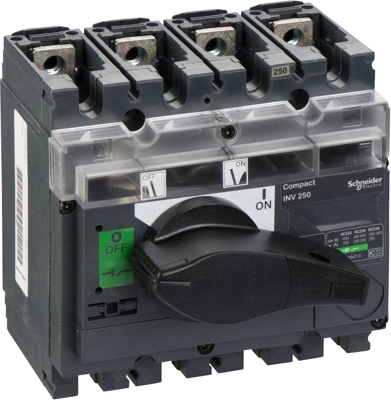

Load-break switch, Rotary actuator, 4 pole, 250 A, 750 V, (W x H x D) 140 x 136 x 96 mm, fixed mounting, 31167

Order No.: 01P3947
EAN: 4099889272901
MPN:
31167
Series: Compact INS/INV
Schneider Electric
31167 Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
317.5872 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
317.59 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
317.5872 €

Switch disconnector, 31167, Schneider Electric

This Compact INV250 is a 4 poles non-automatic switch-disconnector with visible break and black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 250 A at 415 VAC in categories AC21A, AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. Compact INV range allows the visible break of the main contacts through a transparent cover. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INV250 is a class II insulation level front-face device as per IEC 60664 standard.

Technical specifications
Actuator Rotary actuator
Width 140 mm
Permanent current 250 A
Height 136 mm
Isolation voltage 750 V
Assembly fixed mounting
Pin number 4 pole
Degree of protection (IP) IP40
Depth 96 mm
Logistics
Country of origin PL
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
