31168 | Schneider Electric

Load-break switch, rotary actuator, 3 pole, 320 A, 750 V, (W x H x D) 185 x 205 x 130 mm, fixed mounting, 31168

Order No.: 01P3948
EAN: 4099889272918
MPN:
31168
Series: Compact INS/INV
31168 Schneider Electric Circuit Breakers

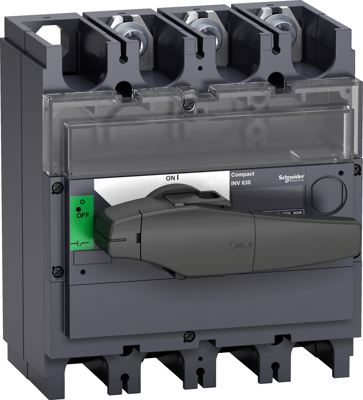

Image may differ
Unit Price (€ / pc.)
380.8119 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
380.81 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
380.8119 €

Switch disconnector, 31168, Schneider Electric

This Compact INV320 is a 3 poles non-automatic switch-disconnector with visible break and black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 320 A at 415 VAC in categories AC21A, AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. Compact INV range allows the visible break of the main contacts through a transparent cover. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INV320 is a class II insulation level front-face device as per IEC 60664 standard.

Technical specifications
Betätiger Drehbetätiger
Breite 185 mm
Dauerstrom 320 A
Höhe 205 mm
Isolationsspannung 750 V
Montage Festeinbau
Polzahl 3-polig
Schutzart (IP) IP40
Tiefe 130 mm
Logistics
Ursprungsland PL
Zolltarifnummer 85365080
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
