31175 | Schneider Electric

Load-break switch, rotary actuator, 4 pole, 630 A, 750 V, (W x H x D) 185 x 205 x 130 mm, fixed mounting, 31175

Order No.: 01P3955
EAN: 4099889272987
MPN:
31175
Series: Compact INS/INV
31175 Schneider Electric Circuit Breakers

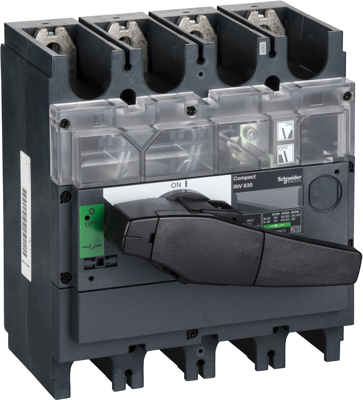

Image may differ
Unit Price (€ / pc.)
824.8247 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
824.82 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
824.8247 €

Switch disconnector, 31175, Schneider Electric

This Compact INV630 is a 4 poles non-automatic switch-disconnector with visible break and black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 630 A at 415 VAC in categories AC21A, AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. Compact INV range allows the visible break of the main contacts through a transparent cover. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INV630 is a class II insulation level front-face device as per IEC 60664 standard.

Technical specifications
Betätiger Drehbetätiger
Breite 185 mm
Dauerstrom 630 A
Höhe 205 mm
Isolationsspannung 750 V
Montage Festeinbau
Polzahl 4-polig
Schutzart (IP) IP40
Tiefe 130 mm
Logistics
Ursprungsland PL
Zolltarifnummer 85365080
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
