31339 | Schneider Electric
Cast-iron enclosed disconnector, rotary actuator, 4 pole, 2000 A, 1000 V, (W x H x D) 462.5 x 440 x 227.5 mm, fixed mounting, 31339
Unit Price (€ / pc.)
3,755.9494 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3,755.95 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3,755.9494 €

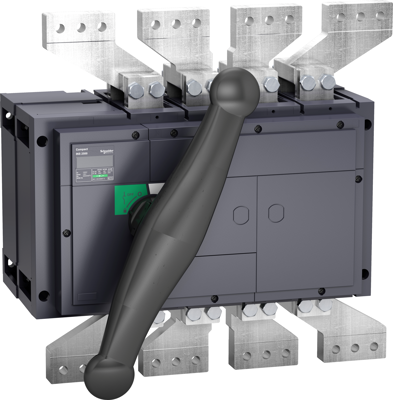

Non-automatic switch-disconnector, 31339, Schneider Electric
This Compact INS2000 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 2000 A at 415 VAC in categories AC21A, AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS2000 is a class II insulation level front-face device as per IEC 60664 standard.
Technical specifications
| Actuator | rotary actuator | |
| Width | 462.5 mm | |
| Permanent current | 2000 A | |
| Height | 440 mm | |
| Isolation voltage | 1000 V | |
| Assembly | fixed mounting | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP40 | |
| Depth | 227.5 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
