31348 | Schneider Electric
Cast-iron enclosed disconnector, Rotary actuator, 3 pole, 1250 A, 1000 V, (W x H x D) 340 x 300 x 146.5 mm, fixed mounting, 31348
Unit Price (€ / pc.)
2,101.0878 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2,101.09 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,101.0878 €
Non-automatic switch-disconnector, 31348, Schneider Electric

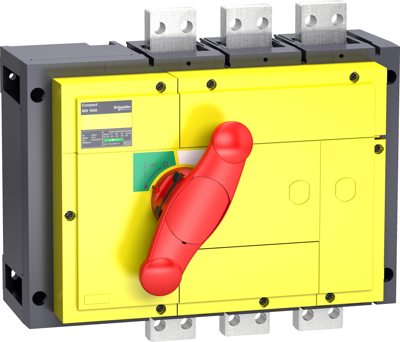

This Compact INS1250 is a 3 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 1250 A at 415 VAC in categories AC21A, AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS1250 is a class II insulation level front-face device as per IEC 60664 standard.
Technical specifications
| Actuator | Rotary actuator | |
| Width | 340 mm | |
| Permanent current | 1250 A | |
| Height | 300 mm | |
| Isolation voltage | 1000 V | |
| Assembly | fixed mounting | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP40 | |
| Depth | 146.5 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
