47230 | Schneider Electric

Circuit breaker, Push actuator, 3 pole, 1250 A, 1000 V, (W x H x D) 288 x 322 x 277 mm, Drawout, 47230

Order No.: 01P4553
EAN: 4099889274394
MPN:
47230
Schneider Electric
47230 Schneider Electric Circuit Breakers

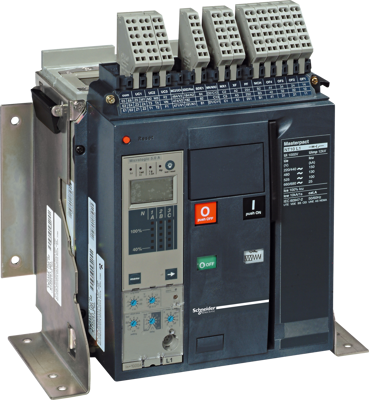

Image may differ
Unit Price (€ / pc.)
3,386.978 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
3,386.98 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3,386.978 €

Basic frame, 47230, Schneider Electric

This is a basic frame for 3 poles Masterpact NT12H1 drawout circuit breaker. Masterpact NT is a comprehensive range of air circuit breakers designed to protect electrical systems from damage caused by overloads, short circuits and equipment ground faults. The breaking capacity (Icu) is 42 kA rms at 440 VAC 50/60 Hz. The rated current is 1250 A. This basic frame is compatible with any type of Micrologic control unit which has to be ordered separately. The basic frame must be associated with the corresponding chassis which has also to be ordered separately. With Micrologic control unit, Masterpact NT contributes to safety and energy efficiency. It can be equipped with a variety of optional functions and accessories. The dimensions are 288mm (W) x 322mm (H) x 277mm (D). It ensures compliance with international standards (IEC 60947), UL489, CCC, EAC and marine specifications.

Technical specifications
Actuator Push actuator
Width 288 mm
Permanent current 1250 A
Height 322 mm
Isolation voltage 1000 V
Assembly Drawout
Pin number 3 pole
Degree of protection (IP) IP30
Depth 277 mm
Logistics
Country of origin NL
Customs tariff number 85362090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead, lead monoxide (lead oxide)
