47249 | Schneider Electric

Disconnect switch, Push actuator, 4 pole, 630 A, 1000 V, (W x H x D) 346 x 301 x 196 mm, Drawout, 47249

Order No.: 01P4562
EAN: 4099889274424
MPN:
47249
Series: Masterpact LTRS
Schneider Electric
47249 Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
4,186.5747 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
4,186.57 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4,186.5747 €

Switch-disconnector, 47249, Schneider Electric

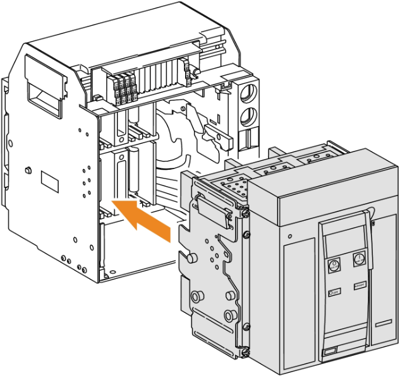

Open switch-disconnector MasterPact NT, 630 A, HA Icm is 60 kA at 690 V, 4-pole, in withdrawable technique without cassette.

Technical specifications
Actuator Push actuator
Width 346 mm
Permanent current 630 A
Height 301 mm
Isolation voltage 1000 V
Assembly Drawout
Pin number 4 pole
Degree of protection (IP) IP30
Depth 196 mm
Logistics
Country of origin NL
Customs tariff number 85362090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead, lead monoxide (lead oxide)
