A9S60232 | Schneider Electric
Load-break switch, toggle actuator, 2 pole, 32 A, 500 V, (W x H x D) 18 x 77 x 70 mm, fixed mounting, A9S60232
Unit Price (€ / pc.)
36.8781 € *
Available: 0 pcs.
Leadtime: 1 Week **

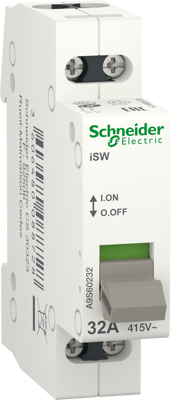

Switch disconnector, A9S60232, Schneider Electric
This Acti 9 iSW is a modular and reliable switch disconnector. it is a 2P, rated current is 32 A, and operating voltage is 415 VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C. The storage temperature is -40°C to +70°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 77mm x (D) 70mm. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-2-4.
Technical specifications
| Actuator | Kippbetätiger | |
| Width | 18 mm | |
| Permanent current | 32 A | |
| Height | 77 mm | |
| Isolation voltage | 500 V | |
| Assembly | Festeinbau | |
| Pin number | 2-polig | |
| Product type | Lasttrennschalter | |
| Degree of protection (IP) | IP20 | |
| Depth | 70 mm |
Download
Logistics
| Country of origin | BE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
