A9S60432 | Schneider Electric
Load-break switch, toggle actuator, 4 pole, 32 A, 500 V, (W x H x D) 36 x 77 x 70 mm, fixed mounting, A9S60432
Unit Price (€ / pc.)
63.6769 € *
Available: 0 pcs.
Leadtime: On Request **

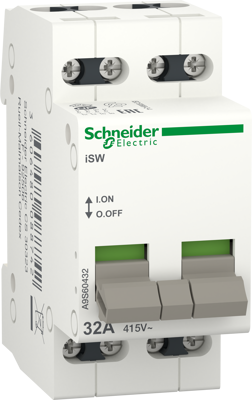

Switch disconnector, A9S60432, Schneider Electric
This Acti 9 iSW is a modular and reliable switch disconnector. it is a 4P, rated current is 32 A, and operating voltage is 415 VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C. The storage temperature is -40°C to +70°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 77mm x (D) 70mm. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-2-4.
Technical specifications
| Actuator | toggle actuator | |
| Width | 36 mm | |
| Permanent current | 32 A | |
| Height | 77 mm | |
| Isolation voltage | 500 V | |
| Assembly | fixed mounting | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP20 | |
| Depth | 70 mm |
Download
Logistics
| Country of origin | BE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
