EZC100H3032 | Schneider Electric

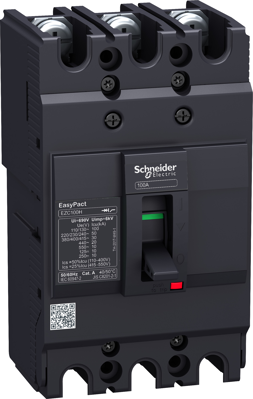

Circuit breaker, toggle actuator, 3 pole, 32 A, 690 V, (W x H x D) 75 x 130 x 60 mm, fixed mounting, EZC100H3032
Unit Price (€ / pc.)
234.2872 € *
Available: 0 pcs.
Leadtime: On Request **
Circuit breaker, EZC100H3032, Schneider Electric
EasyPact EZC100H is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 30 kA rms at 415 VAC 50/60 Hz. The operational voltage is 550 VAC 50/60 Hz or 250 VDC. The rating of the thermal-magnetic trip unit is 32 A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. Easypact EZC100H is compliant with international standards (IEC 60947, UL 508) and marine certifications.
Technical specifications
| Actuator | toggle actuator | |
| Width | 75 mm | |
| Permanent current | 32 A | |
| Height | 130 mm | |
| Isolation voltage | 690 V | |
| Assembly | fixed mounting | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP20 | |
| Depth | 60 mm |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85362090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
