GB2DB16 | Schneider Electric
Circuit breaker, toggle actuator, 2 pole, 10 A, (W x H x D) 30 x 74 x 70 mm, mounting plate, GB2DB16
Unit Price (€ / pc.)
33.9507 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
33.95 € *
Price list
Quantity
Price per unit*
1 pcs.
33.9507 €
2 pcs.
32.5941 €
3 pcs.
31.3327 €
*incl. VAT plus shipping costs
**Subject to prior sale

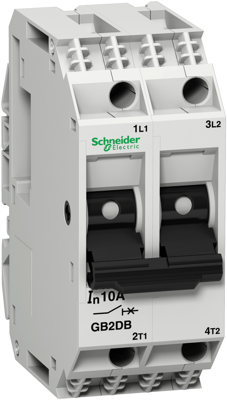

Circuit breaker, GB2DB16, Schneider Electric
TeSys GB circuit breaker, 2 poles (2P), 10 A/415 V, for the protection of industrial equipment control circuits. It provides thermal magnetic protection with a magnetic tripping level at 138A (13 In) and breaking capacity Icu 1.5kA@415 V. It can also be used for protection of DC loads up to 10A/24V DC-13 with a breaking capacity Icu 1.5kA@24V. Compact device (30 mm wide), mounting on 35 mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 3 units. It conforms to IEC 60947-1 and IEC 60947-2, Green Premium product (RoHS/REACh).
Technical specifications
| Actuator | Kippbetätiger | |
| Width | 30 mm | |
| Permanent current | 10 A | |
| Height | 74 mm | |
| Assembly | Montageplatte | |
| Pin number | 2-polig | |
| Product type | Leistungsschalter | |
| Degree of protection (IP) | IP20 | |
| Depth | 70 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
