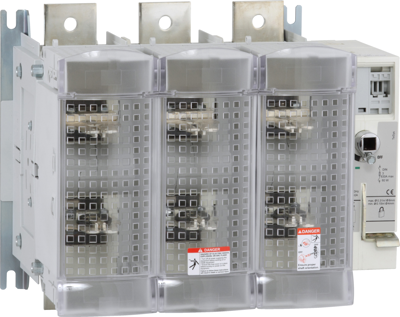

Switch disconnector, GS2V3, Schneider Electric
TeSys GS fuse switch-disconnector, 3 poles (3P), 1250 A/1000 V, to be used with DIN blade fuse links size 4 up to 1250 A, for motor applications up to 560kW@400V AC-23. To be equipped with a direct operating handle GS1 AH104 (to be ordered separately), or with an external operating handle GS2AH that can be front side, left-hand side, or right-hand side mounting (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1 AM (front mounting), GS1 AN (side mounting), GS1 AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG size 4 blade fuse links without strickers DF2LA, DF2LN and with strickers DF4LA, DF4LN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).
