K63H014UP | Schneider Electric
Changeover switch, rotary actuator, 4 pole, 63 A, 690 V, (W x H x D) 64 x 64 x 154 mm, front mounting, K63H014UP
Unit Price (€ / pc.)
148.4882 € *
Available: 0 pcs.
Leadtime: On Request **

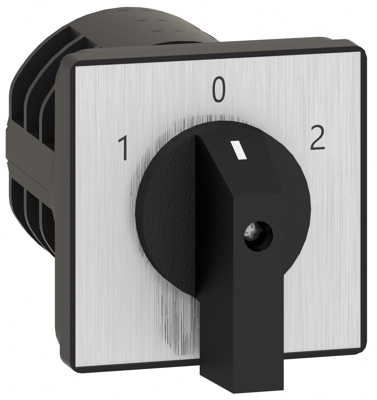

Changeover switch, K63H014UP, Schneider Electric
Changeover switch 63 A, 4 pole, without zero position. Product range: Harmony K. Component name: K63. knv. off. therm. Current Ith: 63 A. Product mounting: Front mounting. Locking of the rotary handle: without. Cam switch function: Changeover switch. Return: none. Description of poles: 4P. Switching positions: left: 330°, right: 30°. IP degree of protection: IP40 according to IEC 529, IP40 according to NF C 20-010.
Technical specifications
| Actuator | rotary actuator | |
| Width | 64 mm | |
| Permanent current | 63 A | |
| Height | 64 mm | |
| Isolation voltage | 690 V | |
| Assembly | front mounting | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP40 | |
| Depth | 154 mm |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
