LV525353 | Schneider Electric

Circuit breaker, toggle actuator, 4 pole, 250 A, (W x H x D) 140 x 161 x 86 mm, fixed mounting, LV525353

Order No.: 06P7984
EAN: 3606480238574
MPN:
LV525353
Series: EasyPact CVS
LV525353 Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
804.5114 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
804.51 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
804.5114 €

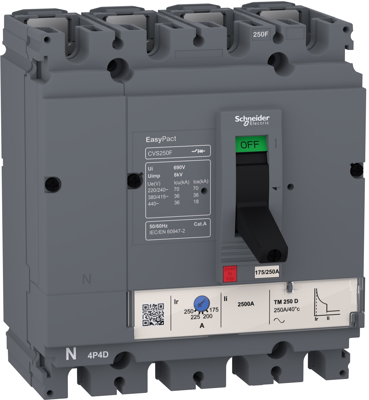

Circuit breaker, LV525353, Schneider Electric

EasyPact LV525353 is a 4 poles 4d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36 kA rms at 415V AC 50/60Hz. The operational voltage is 440V AC 50/60Hz. This product embeds a 250 A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. EasyPact LV525353 is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).

Technical specifications
Betätiger Kippbetätiger
Breite 140 mm
Dauerstrom 250 A
Höhe 161 mm
Montage Festeinbau
Polzahl 4-polig
Schutzart (IP) IP40
Tiefe 86 mm
Logistics
Ursprungsland CN
Zolltarifnummer 85362090
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
