LV846459 | Schneider Electric
Basic switch, push actuator, 4 pole, 1000 A, 1000 V, (W x H x D) 306.5 x 259.5 x 207.5 mm, drawout, LV846459
Unit Price (€ / pc.)
4,118.1378 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4,118.14 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4,118.1378 €

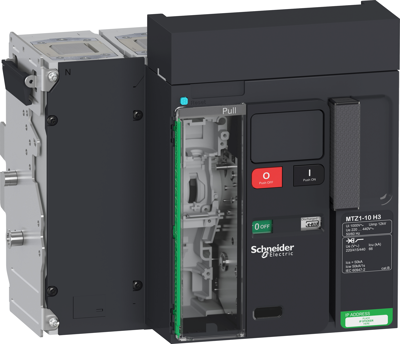

Circuit breaker, LV846459, Schneider Electric
Open circuit breaker Masterpact MTZ1 1000 A H3 Icu=66 kA/440 V, 4P, basic circuit breaker without trip unit Micrologic X, withdrawable type without cassette.
Technical specifications
| Actuator | push actuator | |
| Width | 306.5 mm | |
| Permanent current | 1000 A | |
| Height | 259.5 mm | |
| Isolation voltage | 1000 V | |
| Assembly | drawout | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP30 | |
| Depth | 207.5 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
