Control and release unit, LV848500, Schneider Electric

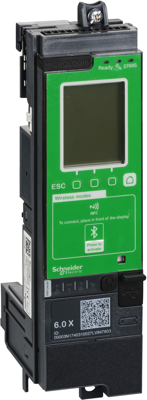

The Micrologic 6.0 X is an electronic control and tripping device that is used with MasterPact MTZ withdrawable circuit-breakers. The Micrologic 6.0 X has adjustable long-term protection, short-time delayed and immediate short-circuit protection, as well as earth fault protection. The Micrologic X control unit has multiple communication channels, including Ethernet, Modbus SL and wireless communication facilities. With its integrated HMI with backlighting, the Micrologic X enables quick identification of alarm messages.
The information processed by the Micrologic X can be displayed on the integrated HMI with backlighting, on a smartphone via Bluetooth or NFC and on a PC via the USB port. The protection functions can be set via the integrated display, a smartphone via Bluetooth or with a PC, with the EcoStruxure Power Commission and additionally via Ethernet and Modbus SL communication.
