VC1GUN | Schneider Electric
Load-break switch, Rotary actuator, 3 pole, 20 A, (W x H x D) 121 x 164 x 132 mm, VC1GUN
Unit Price (€ / pc.)
122.2011 € *
Available: 0 pcs.
Leadtime: On Request **
Load-break switch, VC1GUN, Schneider Electric

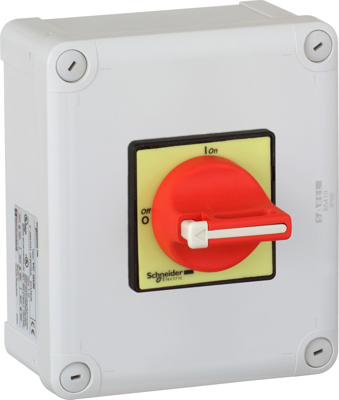

The VC1GUN is a 3-pole TeSys Vario encapsulated switch-disconnector for main and emergency stop switching in motor applications 10HP@600V. It includes a V1 Vario switch-disconnector with 20A according to UL/CSA. It offers an IP65 / NEMA Type 12 enclosure with a red and yellow actuator. It is certified to multiple standards (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach).
Technical specifications
| Actuator | Rotary actuator | |
| Width | 121 mm | |
| Permanent current | 20 A | |
| Height | 164 mm | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65 | |
| Depth | 132 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
