VCF02 | Schneider Electric
Emergency stop/main switch, rotary actuator, 3 pole, 12 A, (W x H) 60 x 74 mm, screw mounting, VCF02
Unit Price (€ / pc.)
25.0376 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
25.04 € *
Price list
Quantity
Price per unit*
1 pcs.
25.0376 €
5 pcs.
24.3593 €
*incl. VAT plus shipping costs
**Subject to prior sale

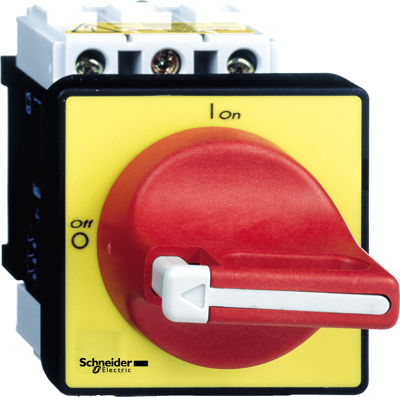

Emergency stop/main switch, VCF02, Schneider Electric
TeSys Vario switch disconnector for door mounting, 3 poles, 12 A/690 V, for motor switching applications up to 4kW@400V AC-23. Complete unit composed of a switch body V02, a red handle with yellow 60x60 mm front plate KCF1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Actuator | Drehbetätiger | |
| Width | 60 mm | |
| Permanent current | 12 A | |
| Height | 74 mm | |
| Assembly | Schraubmontage | |
| Pin number | 3-polig | |
| Product type | Not-Aus-/Hauptschalter | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
| Sustainable | Yes |
