A9F04410 | Schneider Electric
Circuit breaker, 4 pole, C Curve, 10 A, 400 V, DIN rail, A9F04410
Unit Price (€ / pc.)
141.0983 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
141.10 € *
Price list
Quantity
Price per unit*
1 pcs.
141.0983 €
2 pcs.
137.4807 €
3 pcs.
134.0416 €
*incl. VAT plus shipping costs
**Subject to prior sale

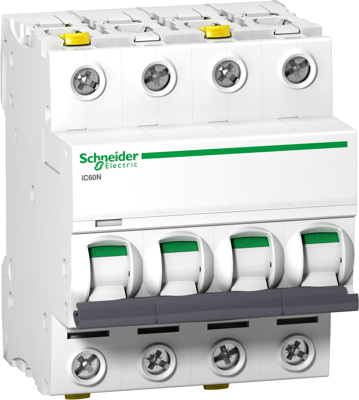

Circuit breaker, A9F04410, SCHNEIDER
The A9F04410 is a low voltage miniature circuit breaker. It is a 4P circuit breaker with 4 protected poles and 10 A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 20 kA at 220 V AC to 240 V AC. This miniature circuit breaker protects circuits against short circuit and overload current.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Technical specifications
| Tripping characteristics | C | |
| Rated Voltage | 400 V | |
| Rated current | 10 A | |
| Assembly | DIN-Schiene | |
| Pin number | 4-polig | |
| Product type | Leitungsschutzschalter | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | BG |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
| Sustainable | Yes |
