A9F04704 | Schneider Electric
Circuit breaker, 3 pole, C Curve, 4 A, 230 V, DIN rail, A9F04704
Unit Price (€ / pc.)
152.4866 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
152.49 € *
Price list
Quantity
Price per unit*
1 pcs.
152.4866 €
2 pcs.
148.5834 €
3 pcs.
144.8587 €
*incl. VAT plus shipping costs
**Subject to prior sale

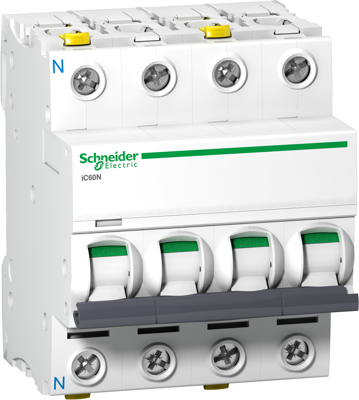

Circuit breaker, A9F04704, SCHNEIDER
The A9F04704 is a low voltage miniature circuit breaker. It is a 3P+N circuit breaker with 3 protected poles and 4 A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 50 kA at 220 V AC to 240 V AC. This miniature circuit breaker protects circuits against short circuit and overload current.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Technical specifications
| Tripping characteristics | C | |
| Rated Voltage | 230 V | |
| Rated current | 4 A | |
| Assembly | DIN-Schiene | |
| Pin number | 3-polig | |
| Product type | Leitungsschutzschalter | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | BG |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
| Sustainable | Yes |
