A9F93170 | Schneider Electric
Circuit breaker, 1 pole, B Curve, 500 mA, 230 V, DIN rail, A9F93170
Unit Price (€ / pc.)
35.4501 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
35.45 € *
Price list
Quantity
Price per unit*
1 pcs.
35.4501 €
2 pcs.
34.0340 €
4 pcs.
32.7250 €
*incl. VAT plus shipping costs
**Subject to prior sale

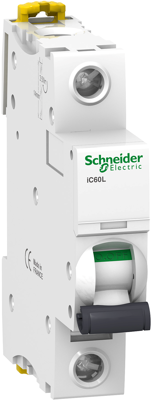

Circuit breaker, A9F93170, SCHNEIDER
The A9F93170 is a low voltage miniature circuit breaker. It is a 1P circuit breaker with 1 protected pole and 500 mA In rated current and B tripping curve. The rated short circuit breaking capacity goes up to 100 kA at 220 V AC to 240 V AC. This miniature circuit breaker protects circuits against short circuit and overload current.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Technical specifications
| Tripping characteristics | B | |
| Rated Voltage | 230 V | |
| Rated current | 500 mA | |
| Assembly | DIN-Schiene | |
| Pin number | 1-polig | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
| Sustainable | Yes |
