A9F93402 | Schneider Electric

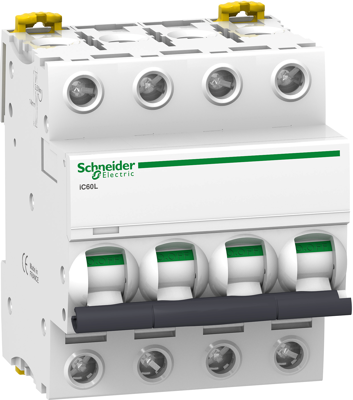

Circuit breaker, 4 pole, B Curve, 2 A, 400 V, DIN rail, A9F93402
Unit Price (€ / pc.)
227.1472 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
227.15 € *
Price list
Quantity
Price per unit*
1 pcs.
227.1472 €
2 pcs.
221.6018 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circuit breaker, A9F93402, SCHNEIDER
The A9F93402 is a low voltage miniature circuit breaker. It is a 4P circuit breaker with 4 protected poles and 2 A In rated current and B tripping curve. The rated short circuit breaking capacity goes up to 100 kA at 220 V AC to 240 V AC. This miniature circuit breaker protects circuits against short circuit and overload current.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Technical specifications
| Tripping characteristics | B | |
| Rated Voltage | 400 V | |
| Rated current | 2 A | |
| Assembly | DIN-Schiene | |
| Pin number | 4-polig | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
| Sustainable | Yes |
