A9F94102 | Schneider Electric

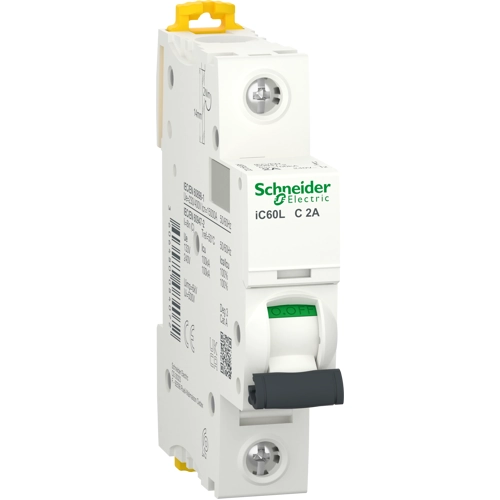

Circuit breaker, 1 pole, C Curve, 2 A, 230 V, DIN rail, A9F94102
Unit Price (€ / pc.)
50.0395 € *
Available: 0 pcs.
Leadtime: On Request **
Circuit breaker, A9F94102, SCHNEIDER
The A9F94102 is a low voltage miniature circuit breaker. It is a 1P circuit breaker with 1 protected pole and 2 A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 100 kA at 220 V AC to 240 V AC. This miniature circuit breaker protects circuits against short circuit and overload current.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Technical specifications
| Auslösecharakteristik | C | |
| Bemessungsspannung | 230 V | |
| Bemessungsstrom | 2 A | |
| Montage | DIN-Schiene | |
| Polzahl | 1-polig | |
| Schutzart (IP) | IP20 |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85362010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
| Nachhaltig | Yes |
