A9N18346 | Schneider Electric
Circuit breaker, 2 pole, B Curve, 100 A, 415 V, DIN rail, A9N18346
Unit Price (€ / pc.)
185.0926 € *
Available: 0 pcs.
Leadtime: On Request **

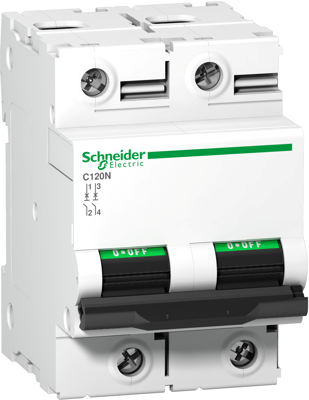

Circuit breaker, A9N18346, SCHNEIDER
The A9N18346 is a multistandard low voltage miniature circuit breaker. It is a 2P circuit breaker with 2 protected poles and 100 A In rated current and B tripping curve. The rated short circuit breaking capacity goes up to 10000 A at 230 V AC 400 V AC. This miniature circuit breaker protects circuits against short circuit and overload current.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Technical specifications
| Auslösecharakteristik | B | |
| Bemessungsspannung | 415 V | |
| Bemessungsstrom | 100 A | |
| Montage | DIN-Schiene | |
| Nennspannung (AC) | 440 V | |
| Nennspannung (DC) | 250 V | |
| Polzahl | 2-polig | |
| Schutzart (IP) | IP20 |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85362090 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
| Nachhaltig | Yes |
