A9N18381 | Schneider Electric
Circuit breaker, 1 pole, D Curve, 125 A, 415 V, DIN rail, A9N18381
Unit Price (€ / pc.)
96.8303 € *
Available: 0 pcs.
Leadtime: On Request **

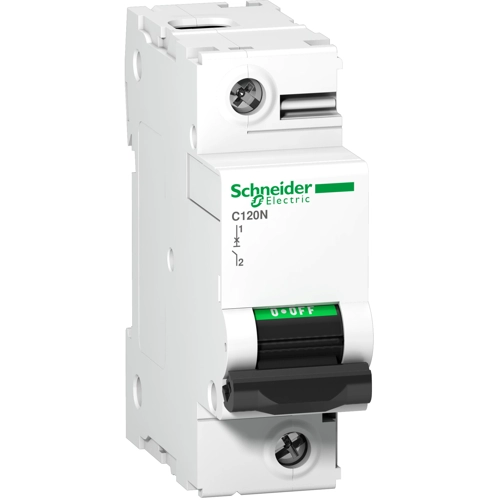

Circuit breaker, A9N18381, SCHNEIDER
The A9N18381 is a multistandard low voltage miniature circuit breaker. It is a 1P circuit breaker with 1 protected pole and 125 A In rated current and D tripping curve. The rated short circuit breaking capacity goes up to 3 kA at 380 V AC 415 V AC. This miniature circuit breaker protects circuits against short circuit and overload current.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Technical specifications
| Auslösecharakteristik | D | |
| Bemessungsspannung | 415 V | |
| Bemessungsstrom | 125 A | |
| Montage | DIN-Schiene | |
| Nennspannung (AC) | 415 V | |
| Nennspannung (DC) | 144 V | |
| Polzahl | 1-polig | |
| Schutzart (IP) | IP20 |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85362090 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
| Nachhaltig | Yes |
