A9N61522 | Schneider Electric
Circuit breaker, 2 pole, C Curve, 2 A, 440 V, DIN rail, A9N61522
Unit Price (€ / pc.)
134.5771 € *
Available: 0 pcs.
Leadtime: On Request **

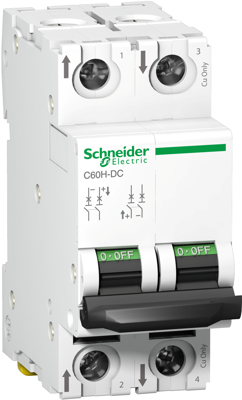

Circuit breaker, A9N61522, SCHNEIDER
The A9N61522 is a low voltage direct current miniature circuit breaker. It is a 2P circuit breaker with 2 protected poles and 2 A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 20 kA at 220 V DC. This miniature circuit breaker protects circuits against short circuit and overload current.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Technical specifications
| Auslösecharakteristik | C | |
| Bemessungsspannung | 440 V | |
| Bemessungsstrom | 2 A | |
| Montage | DIN-Schiene | |
| Polzahl | 2-polig | |
| Schutzart (IP) | IP20 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85362010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
| Nachhaltig | Yes |
