M9F11150 | Schneider Electric
Circuit breaker, 1 pole, C Curve, 50 A, 240 V, DIN rail, M9F11150
Unit Price (€ / pc.)
48.671 € *
Available: 0 pcs.
Leadtime: On Request **

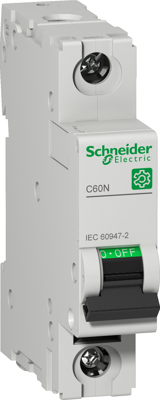

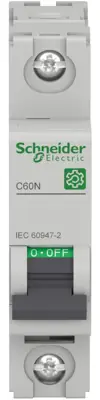

Circuit breaker, M9F11150, SCHNEIDER
The M9F11150 is a low voltage miniature circuit breaker. It is a 1P circuit breaker with 1 protected pole and 50 A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3 kA at 415 V AC. This product protects from short circuit, earth leakage and overload.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Applications
- Semiconductor industry
- Telecom industries
Technical specifications
| Auslösecharakteristik | C | |
| Bemessungsspannung | 240 V | |
| Bemessungsstrom | 50 A | |
| Montage | DIN-Schiene | |
| Nennspannung (AC) | 415 V | |
| Nennspannung (DC) | 72 V | |
| Polzahl | 1-polig | |
| Schutzart (IP) | IP20 |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85362010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
| Nachhaltig | Yes |
