M9F15120 | Schneider Electric
Circuit breaker, 1 pole, D Curve, 20 A, 240 V, DIN rail, M9F15120
Unit Price (€ / pc.)
37.2113 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
37.21 € *
Price list
Quantity
Price per unit*
1 pcs.
37.2113 €
2 pcs.
35.7238 €
4 pcs.
34.3553 €
*incl. VAT plus shipping costs
**Subject to prior sale

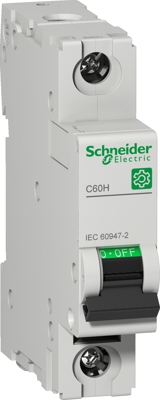

Circuit breaker, M9F15120, SCHNEIDER
The M9F15120 is a low voltage miniature circuit breaker. It is a 1P circuit breaker with 1 protected pole and 20 A In rated current and D tripping curve. The rated short circuit breaking capacity goes up to 3 kA at 415 V AC. This product protects from short circuit, earth leakage and overload.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Applications
- Semiconductor industry
- Telecom industries
Technical specifications
| Tripping characteristics | D | |
| Rated Voltage | 240 V | |
| Rated current | 20 A | |
| Assembly | DIN-Schiene | |
| Rated voltage (AC) | 415 V | |
| Rated voltage (DC) | 72 V | |
| Pin number | 1-polig | |
| Product type | Leitungsschutzschalter | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
| Sustainable | Yes |
