M9F22413 | Schneider Electric
Circuit breaker, 4 pole, C Curve, 13 A, 277 V, DIN rail, M9F22413
Unit Price (€ / pc.)
75.0295 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
75.03 € *
Price list
Quantity
Price per unit*
1 pcs.
75.0295 €
2 pcs.
72.0307 €
3 pcs.
69.2580 €
*incl. VAT plus shipping costs
**Subject to prior sale

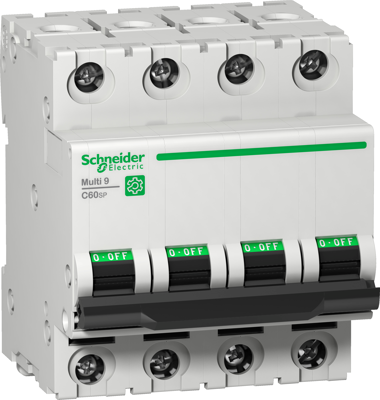

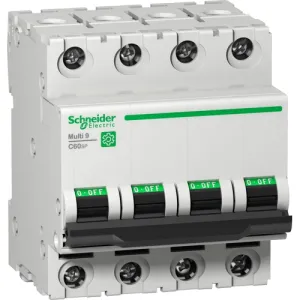

Circuit breaker, M9F22413, SCHNEIDER
The M9F22413 is a low voltage miniature circuit breaker. It is a 4P circuit breaker with 4 protected poles and 13 A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10 kA at 415 V AC. This product protects from short circuit, earth leakage and overload.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Applications
- Semiconductor industry
- Telecom industries
Technical specifications
| Tripping characteristics | C | |
| Rated Voltage | 277 V | |
| Rated current | 13 A | |
| Assembly | DIN-Schiene | |
| Rated voltage (AC) | 440 V | |
| Pin number | 4-polig | |
| Product type | Leitungsschutzschalter | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
| Sustainable | Yes |
